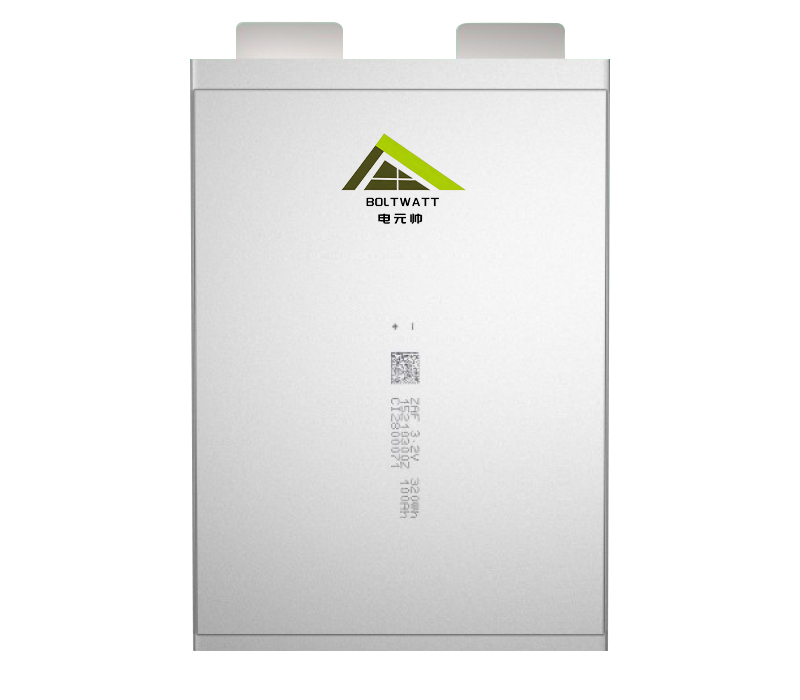

Polymer Soft Pack Cell_100ah_Pouch Cell_Battery Cell_Product

Detailed：

Application fields: base station energy storage, homeenergy storage, wind and solar complementary energystorage, large energy storage.

型号 Model	STF12165245	STF12210300	STF16210300
材料体系 Material system	磷酸铁锂Lithium iron phosphate

标称容量 Nominal capacity	50Ah	75Ah	100Ah

标称电压 Nominal voltage	3.2V

循环寿命 Cycling lifespan	6000周0.2C充电/0.5C放电(80%DOD、70%EOL),25℃ 6000weeks 0.2C charge/0.5C discharge(80%DOD,70%EOL),25°℃

电芯重量 ( K G ) Cell weight	≈0.98KG	≈1.45KG	≈1.92KG
能量密度比 ( W h / K g ) Energy density ratio	170	180	190
工作温度 Working temperature	充电Charge:0℃-45℃ 放电Discharge:-20°℃-60°℃

放电电流(25±3℃) Discharge current	标准放电电流0.5C 最大持续放电电流1.0C 脉冲(50%SOC,10s)3 . 0C Standard Standard discharging current 0.5C Maxcontinuous discharging current1.0C Peak(50%SOC,10s)3.0C
充电电流(25±3℃) Charging current	标准充电电流0.33C 最大持续充电电流1.0C Standard charging current 0.3M3aCxcontinuous charging current1.0C

单电芯内阻 Cell internal impedance	≤1.0mΩ		≤0.8mΩ

产品尺寸(厚宽长) Product Size(TWL)	13mm166mm245mm	12.5mm210mm310mm	16.5mm210mm310mm
产品认证 Product cerification	IEC62619/UL/UN38.3/ROHS
