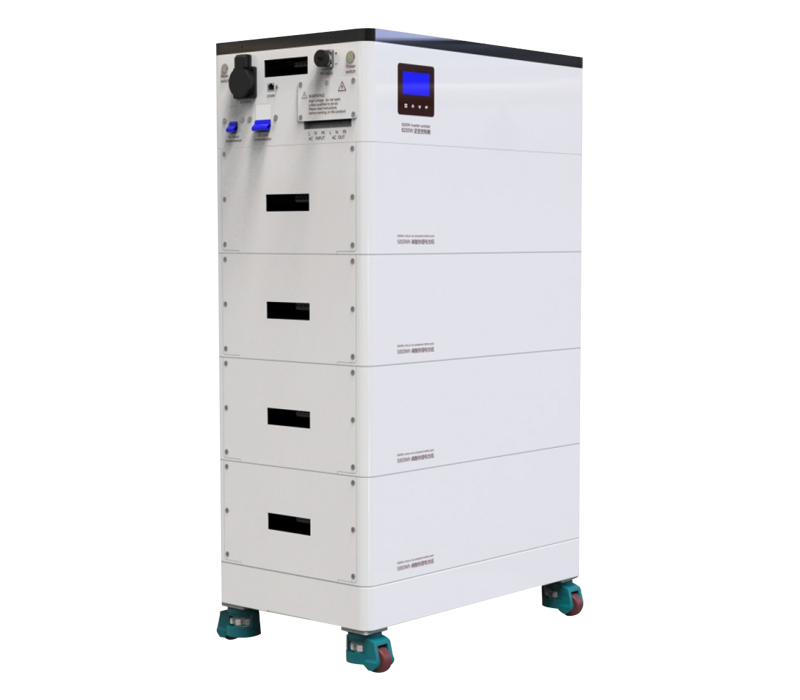

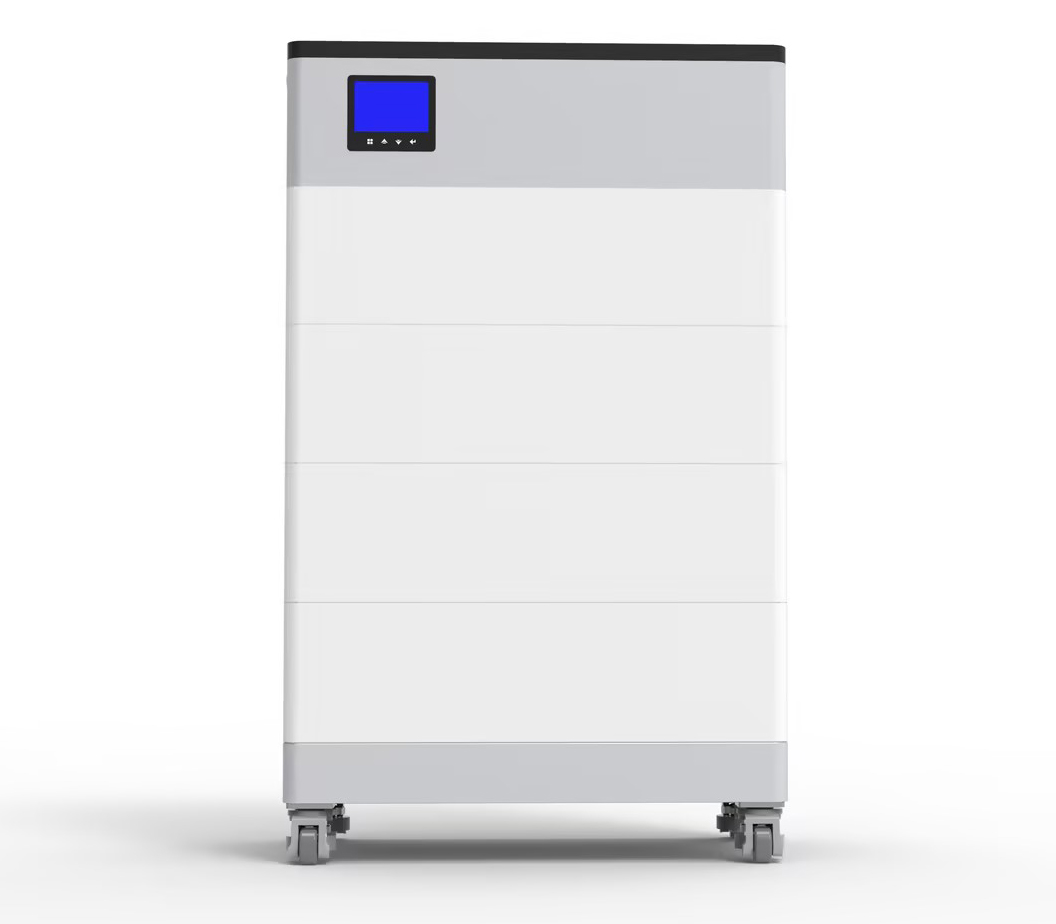

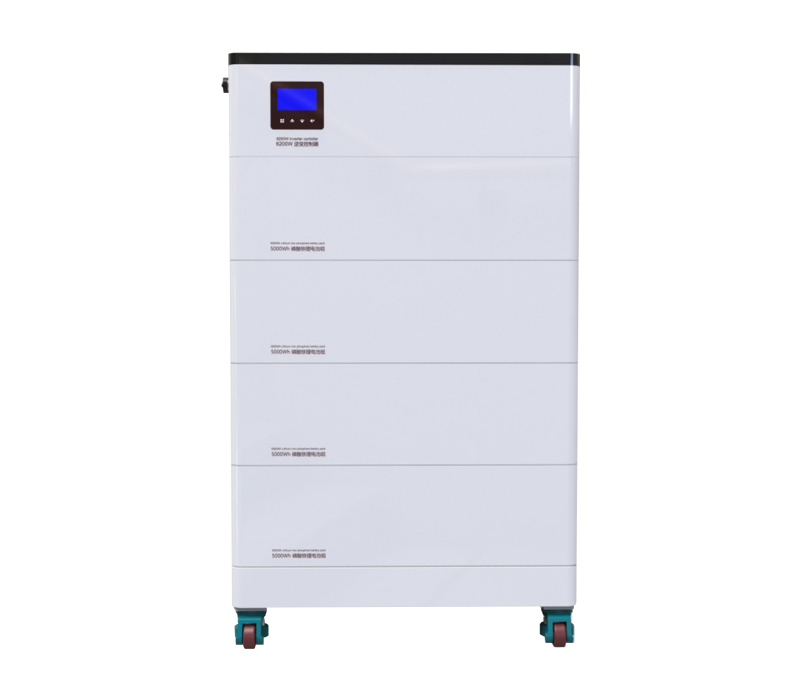

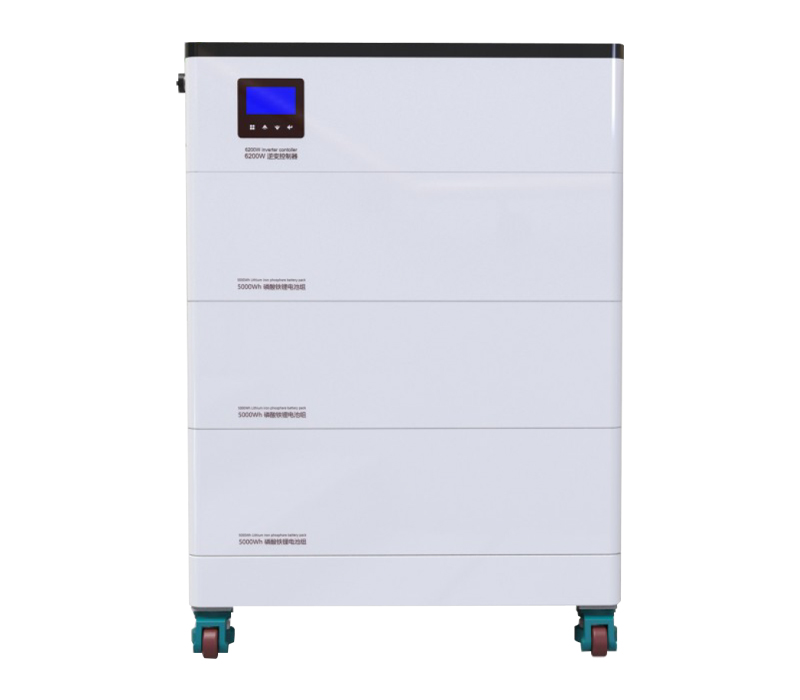

5-30KWhStacked Home Energy Storage Power Supply_Stackable(LV)_Home Energy Storage_Product

Detailed：

Intelligent home energy storage power supply products using lithium iron phosphate battery system.

电池组数量 Number of battery packs	1层电池组 1-layer battery pack	2层电池组 2-layer battery pack	3层电池组 3-layer battery pack	4层电池组 4-layer battery pack	5层电池组 5-layer battery pack	6层电池组 6-layer battery pack
材料体系 material system	磷酸铁锂Lithium iron phosphate

标称电压 Rated voltage	51.2V

电池组能量 Battery pack energy	5.12KWh	10.24KWh	15.36KWh	20.48KWh	25.60KWh	30.72KWh

循环寿命 cycle life	5000周0.2C充电/0.5C放电(80%DOD、70%EOL),25℃ 5000weeks 0.2C charge/0.5C discharge(80%DOD,70%EOL),25℃

工作温度 Operating Temperature	充电Charging:0°℃~45℃ 放电Discharge:-10°℃~55 Charging: 0 ° C~45 ° C Discharge: -10 ° C~55 ° C℃

产品重量 Product weight	≈95KG	≈140KG	≈185KG	≈230KG	≈275KG	≈320KG
se (1w^H)	600350458mm	600350633mm	600350808mm	600350983mm	6003501158mm	6003501333mm
产品认证 Product Certification	IEC62619/UN38.3/CE-EMC/ROHS/FCC
